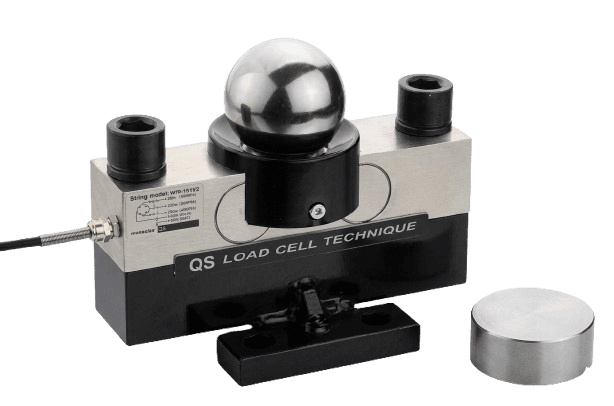

Meticulously designed for industrial and commercial efficiency, representing top tier durability, high quality components, and peak output capability.

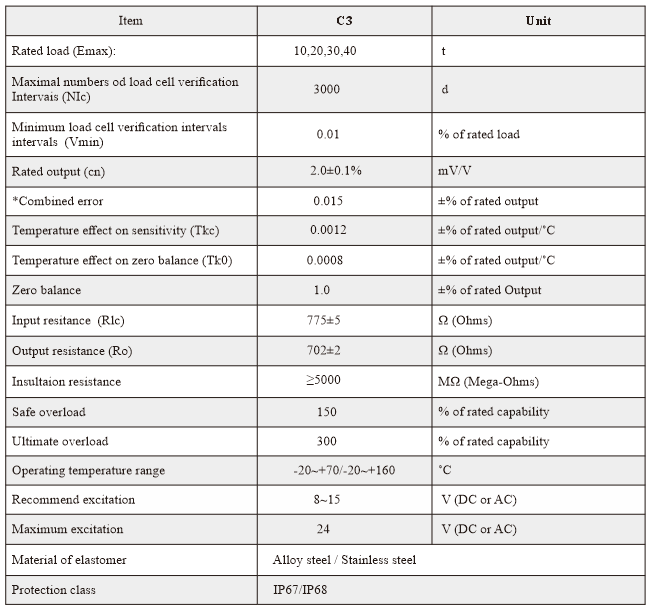

Capacities (Emax): 10,20,30,40t
Accuracy Class :C3 OIML R60
Execution standard : GB/T 7551-2008 Certificate (eqv OIML R60) Combined error : 0.015%
Material of elastomer Alloy steel or stainless steel
Ouput 2.0mV/V Digital: 1,000,000d

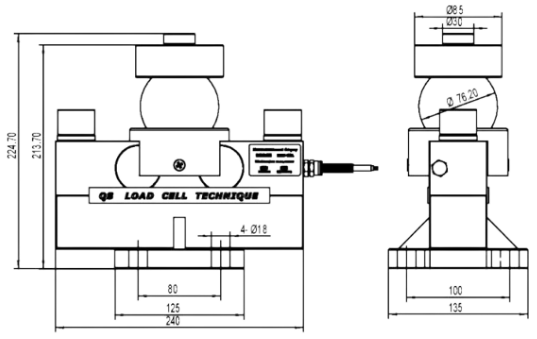

Circuit Diagram: Electrical Termination 4 core cable standard lenghts <=30t: 12,0 m, >=40t: 18m. Diameter:6 Connection Refer to the following drawing.
