Meticulously designed for industrial and commercial efficiency, representing top tier durability, high quality components, and peak output capability.

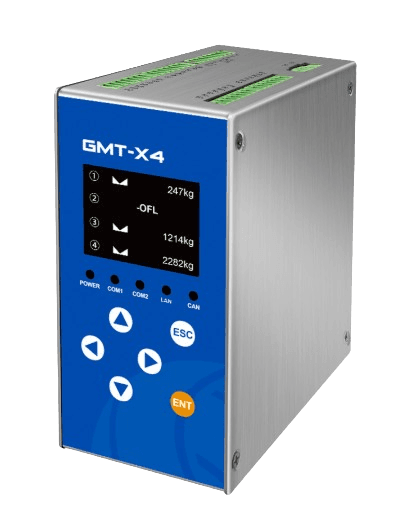

GMT-X4 is a DIN rail-mounted weighing transmitter with four-channel. with the options of 4 individual channels weight display or 4 channels in a total weight display, an intelligent junction box function built-in, it can easily monitor the defaulted load cell. GMT-X4 will automatically identify and give an alarm by displaying the alarm message on the screen. it has the characteristics of compact design, stable performance, and easy operation,which can be used for various weighing applications, such as weight checking, loss-in-weight, liquid filling, batching, vessel and silo weighing, etc.

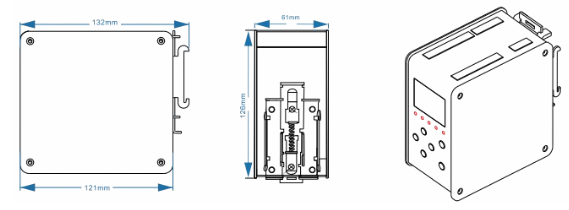

Stainless steel housing with compact design(62×134×128mm
Different configuration choices, a variety of combinations;
Standard:① 4-channel of 6-wire load cell interfaces; ② RS485&RS232; ③ 4 Input 8 Output transistor I/O;
Option1: Modbus TCP/IP or ProfitNet or CCLink;
Option2: 4 analog output;
Option3: 1CAN interface; (Option1,2,3 can be selectad at the same time)
With the option of an intelligent junction box function built-in, can aesily monitor the defaulted load cell.
Zero point reset function; support resetting the zero point as a before power failure when re-powering;
Theoretical value calibration, stable within 3s of the calibration process automatically;
Remote monitoring and configuration by PC with Modbus TCP connecting up to 6 devices at once;
Input anti-vibration function, which time can be set.
