Technical Parameters:
- Display: 6-digit 20mm LED or 25mm LCD with backlight
- Accuracy class: OIML
- AD convert: ∑ -∆ 24bit
- Input voltage: -7mV~12.8mV
- Resolving:display 15,000,internal code 1,000,000
- Minimum resolution: 1Ωv/e
- Excitation voltage: DC3.3V
- Load cell interface: 4-wire, 1~4 350Ω analog load cell(s)
- Power supply : Ac110/220V 50/60Hz
- Or built -in 6V/4Ah lead acid battery
- Work environment: -10°C~+40°C, ≤ 85%RH
- Battery enduring life: 50 hours for continuously use (with 4 350Ω analog load cells)
Options:
- Second display interface: serial Rs232
- Communication interface: Rs232, baud rate 600-9,600 (optional)
- printing interface: shared with serial interface, can be connected to serial printer (optional: desktop printer )
- Bluetooth
Application for:
Electronic floor scale, bench scale, logistics scale, pet scale, load cells, etc

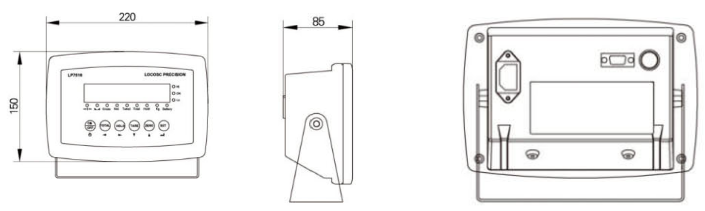

Dimensions:
